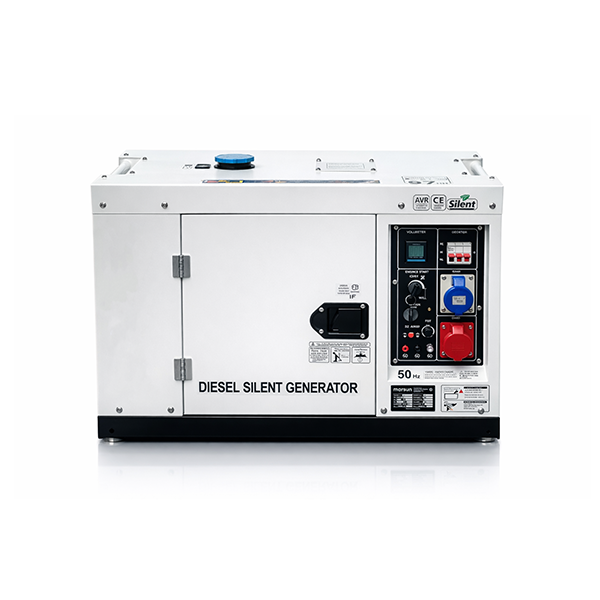

Τριφασική γεννήτρια πετρελαίου 10kW (9.5kW)

Description

Γενικά στοιχεία:

• Three-phase generator with motor Diesel
• Designed for emergency power supply and periodic continuous operation
• Stable current parameters – safe for electronics and automation
• Copper winding
• Quiet work in your class
• Compatible with backup installations and hybrid inverters

Στοιχεία λειτουργίας:

• Rated power: 9,5 kW
• Maximum output power: 10 kW
• Rated voltage: 230 / 400 V
• Frequency: 50 Hz
• Rated current: 18,2 A
• Power factor (cos φ): 0.8
• Engine speed: 3000 rpm
• Number of phases: Three-phase

Έξυπνες λειτουργίες:

• AVR – automatic voltage stabilization
  Provides safe voltage for: hybrid inverters, energy storage, CO controllers and electronics.
• ATS/GR (optional)
  Automatic start of the unit after a power outage from the mains and automatic power switch.
• Collaboration facility: with hybrid inverter, or autonomously (without inverter).

Χαρακτηριστικά γεννήτριας:

• Engine model: 1100F
• Engine type: single cylinder, vertical, four stroke, air cooled, diesel
• Displacement: 667 cm³
• Cylinder diameter × piston stroke: 100 × 85 mm
• Fuel type: diesel fuel
• Fuel consumption: 295 g/kWh
• Fuel tank capacity: 20 l
• Engine oil capacity: 1.65 l
• Noise level: approx. 97 dB
• Dimensions (D × S × W): 1080 × 580 × 810 mm
• Weight: 178 kg
